Antennas

SARA’s High-Frequency Spiral Antenna Products

SARA’s high-frequency spiral antennas are designed specifically for testing MIL-STD-188-125 in limited-space, hard-to-access locations. Our antenna products feature 10kH-1GHz capabilities and include specialized stands or mounts created to accommodate multiple installation configurations. SARA’s cost-effective, high-frequency spiral antennas are individually assembled, tested during and after construction, and provided with a calibration as a function of frequency. Our antennas are proven to be reliable, durable, and capable of meeting the requirements of your specific applications.

Contact Us

ANTENNAS

product equipment photo antenna 4

HF-LA-6L High-Frequency Antennas

The HF-LA-6L is a compact, loop antenna designed to provide a low profile and bandwidth across the full MIL-STD-188-125-1/2 frequency band of 10kHz-1GHz. Its limited antenna-to-antenna separation design was created for HM/HS facility monitoring.

  • Frequency band of 10kHz - 1GHz (MIL-STD-188-125-1/2)
  • Free space calibration & frequency dependent gain data plot
  • Limited warranty
  • Magnetic pads attach antenna to steel surfaces for quick mounting
  • Bubble levels embedded into case
  • Designed for easy use w/ 17" stand
  • 1/4-20 threaded inserts for tripod mounting
  • Desktop tripods included w/ set
product equipment photo antenna 3

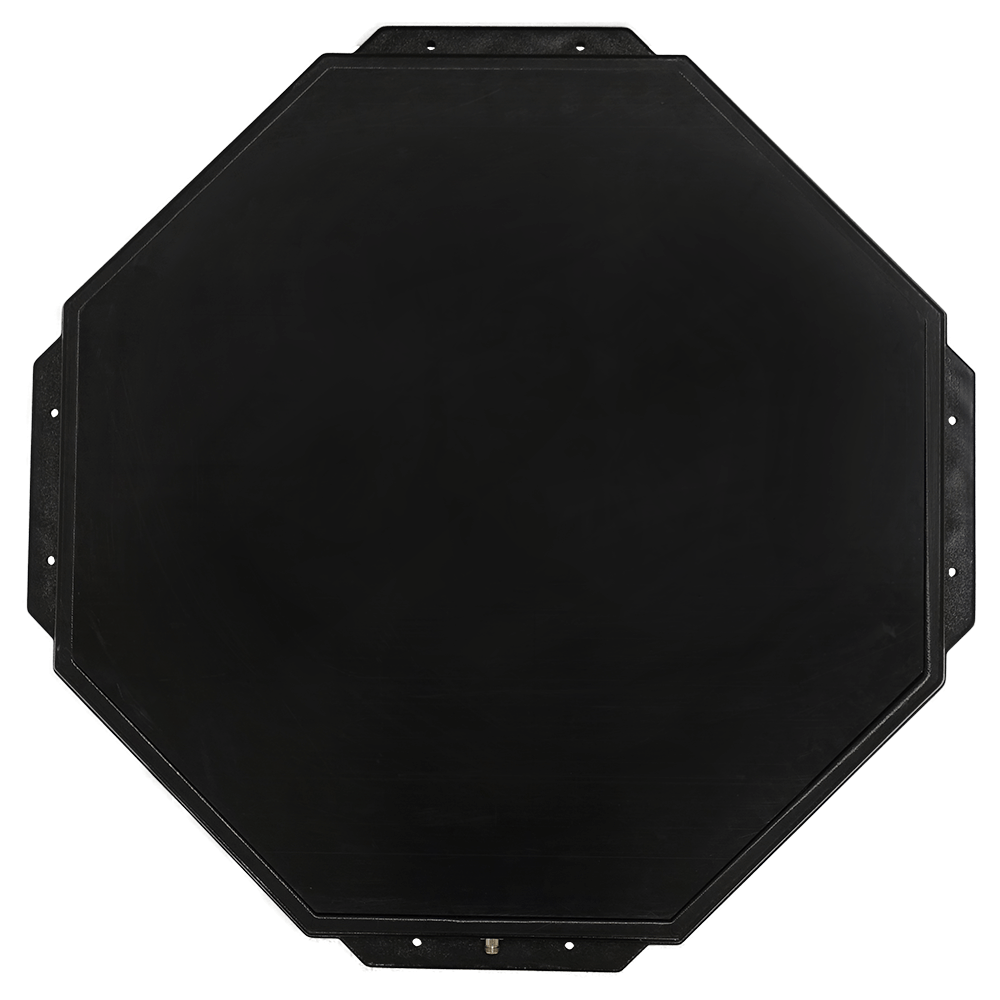

HF-SA-34A High-Frequency Spiral Antennas

The HF-SA-34A is a flat-spiral antenna designed to provide a low profile and bandwidth across the full MIL-STD-188-125-1/2 frequency band of 10kHz-1GHz.

Dimensions:  34” x 34” x 2.1”

Weight: 23 lbs

Features:

  • Frequency band of 10kHz - 1GHz(MIL-STD-188-125-1/2)
  • Free space calibration & frequency dependant gain data plot
  • Permanent integrated facility installation capabilities
  • 100-watt maximum power
  • Calibration data
  • Limited warranty
  • Installation recommendations
product equipment photo antenna 2

HF-SA-17L High-Frequency Spiral Antennas

The HF-SA-17L is a compact, flat-spiral antenna designed to provide a low profile and bandwidth across the full MIL-STD-188-125-1/2 frequency band of 10kHz-1GHz.

Dimensions: 17.5” x 17.5” x 2.5”

Features:

  • Form factor thickness adjustable 1U (1 ½”) to 2 ¾”
  • 100-watt maximum power
  • Frequency band of 10kHz - 1GHz(MIL-STD-188-125-1/2)
  • Free space calibration & frequency dependant gain data plot
  • Limited warranty
  • Bubble levels embedded into case
  • Designed for easy use w/ 17" stand
  • 1/4-20 threaded Inserts for tripod mounting

Accessories

example equipment 04 stand

Basic 1420 Stand (17" Antenna) 44" - 89" Travel

6064 - ANT

Dimensions: 27.5" x 27.5" x 47.1"(L x W x H)

Weight: 19.8 lbs.

1/4-20 Stud

example DT pivot

Basic 1420 Stand (17" Antenna) 44" - 89" Travel

6120 - ANT

Dimensions: 8.5" x 13.25" x 4.5"(L x W x H)

Weight: 2.8 lbs.

Basic 1420 Stand

equipment 01

iM2300 Pelican Case w/ Custom Foam (6" Antenna Set)

iM2300 Storm

Dimensions: 18.2" x 13.4" x 6.7" (L x W x H)

Weight: 6 lbs. Empty

example equipment 03 case

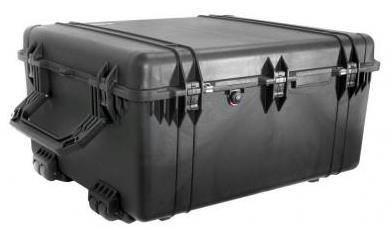

iM1690 Pelican Case w/ Custom Foam (17" Antenna Set)

iM1690 Pelican

Dimensions: 33.5" x 28.5" x 18.5"(L x W x H)

Weight: 34 lbs. Empty

example equipment 02 antennas packageexample equipment 03 case

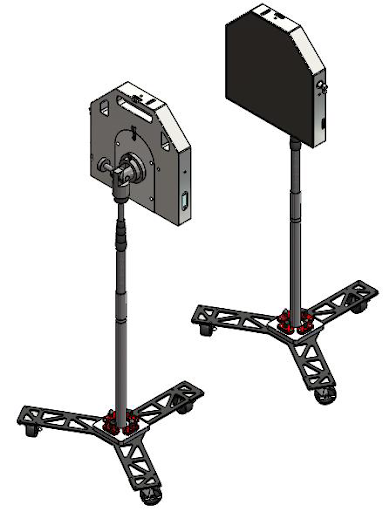

17L HF-SA Complete Set

6380 ANT

example equipment 03 loop antennaequipment 01

6" Loop Antenna Complete Set

6929 ANT
